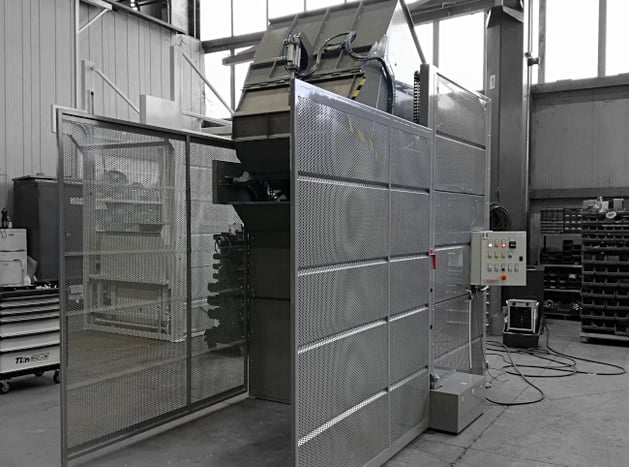

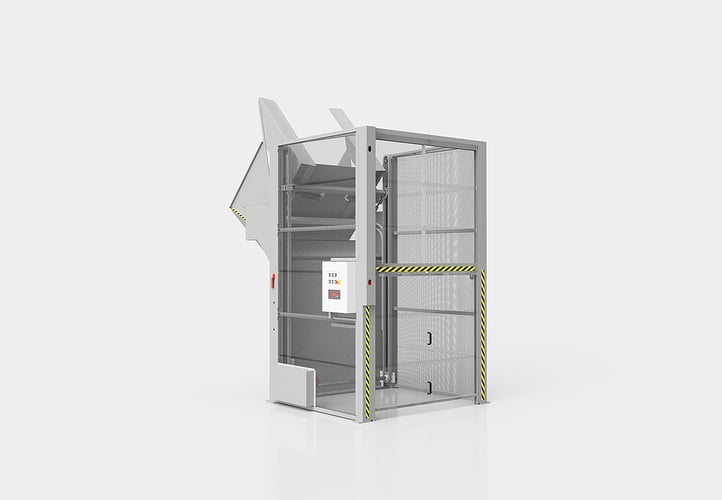

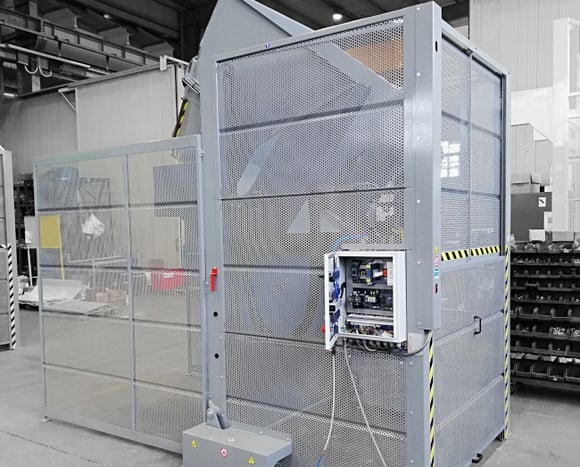

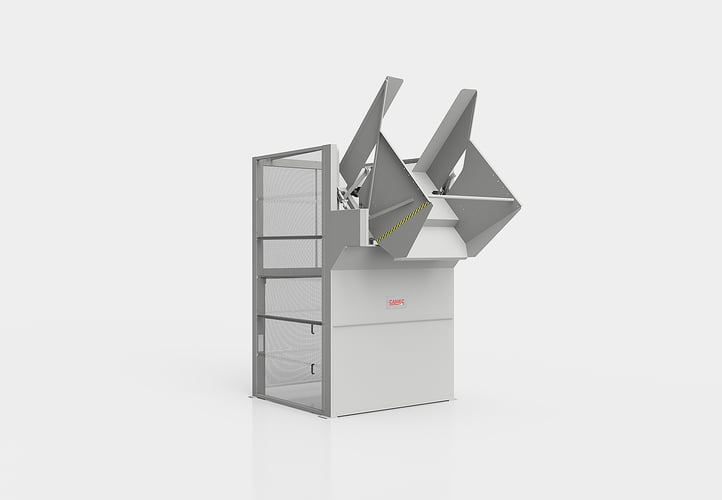

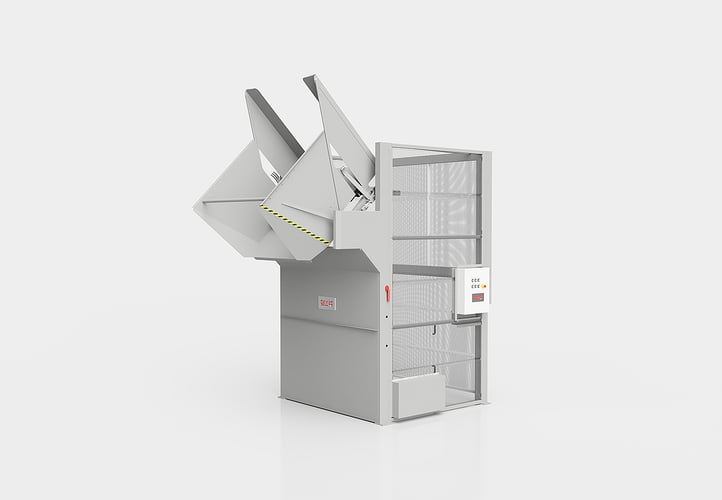

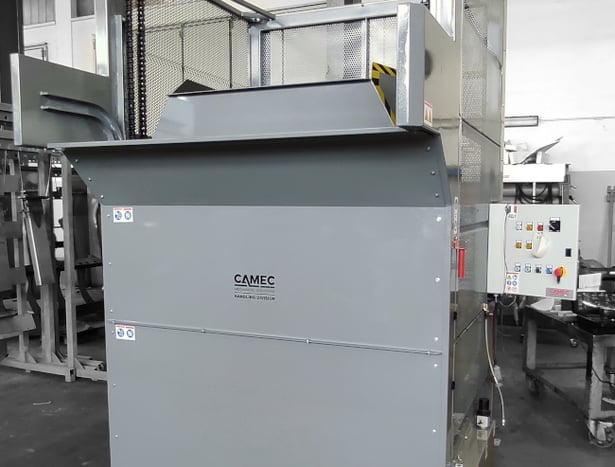

Front Discharge Single Tippers
Ideal to meet all requirements for tipping medium-sized bins containing items that cannot be deteriorated. Bin unloading on the front side opposite the loading side.
Available versions
- Cover with pneumatic actuator
- Gravity cover
- Cover with motorised hopper
- Cover with guillotine
- AISI 304 coating
Description
Ideal to meet all requirements for tipping medium-sized bins containing items that cannot be deteriorated.

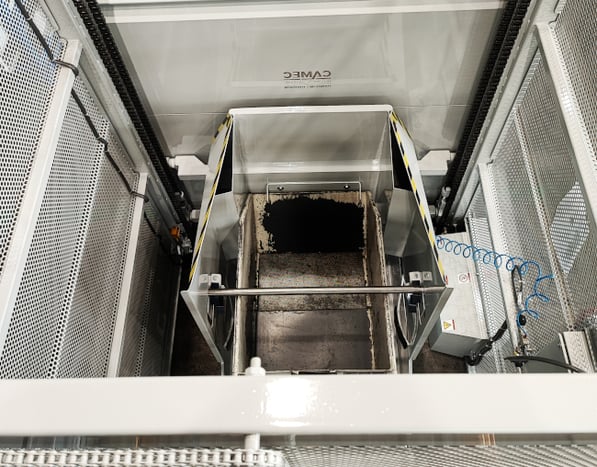

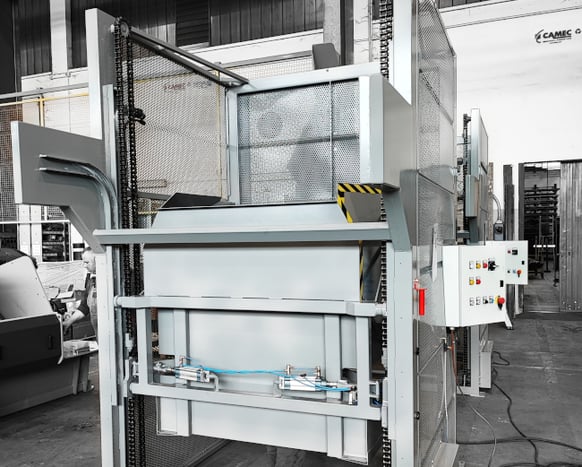

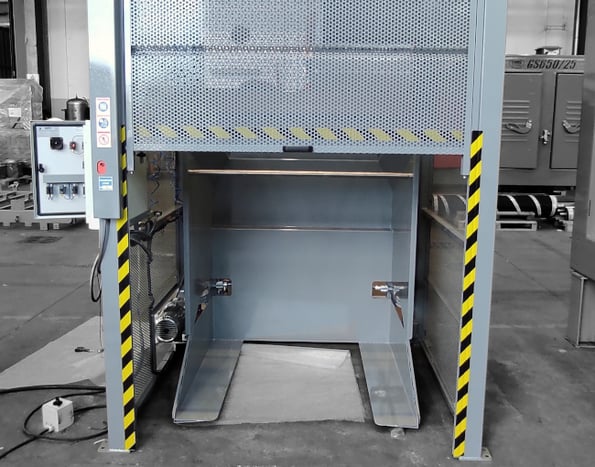

The bin is automatically locked to the lifting platform by means of pneumatic bin locking grippers, and the mechanical bar above the bin retains the bin in the event of a sudden lack of air.
The two bin fall-prevention devices allow the bin to be raised safely up to the set height.
Once it reaches this height, the bin is tipped and once it has been emptied, it is returned to its position.
Technical specifications
- Electric-pneumatic operation

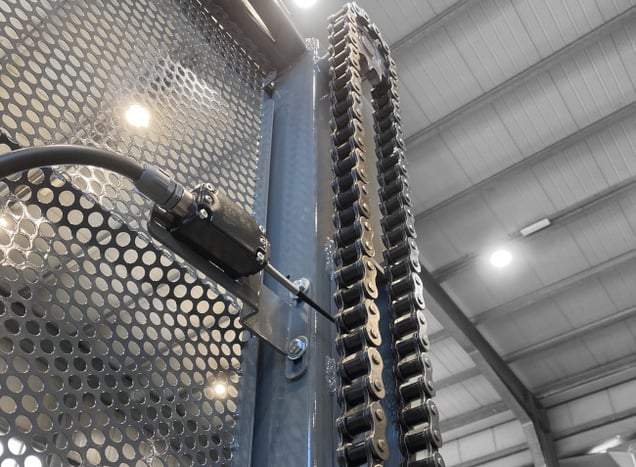

- Chain lifting transmission
- Bin locking grippers
- Bin locking bar
- Pneumatic valve for bin locking
- Door retainer timed micron
- Pneumatic-electric safety valve
- Air connection: 90° connection for Rilsan hose diam. 8
Video
Front Discharge Double Tippers
These tippers are required for particularly heavy-duty work cycles.
Ideal to meet all requirements for tipping medium-sized bins containing items that cannot be deteriorated.
- Electric-pneumatic operation
- Chain lifting transmission
- Bin locking grippers
- Bin locking bar
- Pneumatic valve for bin locking
- Door retainer timed micron
- Pneumatic-electric safety valve
- Air connection: 90° connection for Rilsan hose diam. 8
Side Discharge Tippers
Camec offers a special solution for confined spaces with machines that discharge laterally (right or left) to the loading side.
- Electric-pneumatic operation
- Chain lifting transmission
- Bin locking grippers
- Bin locking bar
- Pneumatic valve for bin locking
- Door retainer timed micron
- Pneumatic-electric safety valve
- Air connection: 90° connection for Rilsan hose diam. 8
Tippers with Stainless Steel Coating for Food Use
System with stainless steel coating only on the internal parts of the trolley in contact with the material or made entirely from stainless steel for food use.
- Electric-pneumatic operation
- Chain lifting transmission
- Bin locking grippers
- Bin locking bar
- Pneumatic valve for bin locking
- Door retainer timed micron
- Pneumatic-electric safety valve
- Air connection: 90° connection for Rilsan hose diam. 8
