Turbine TBR650

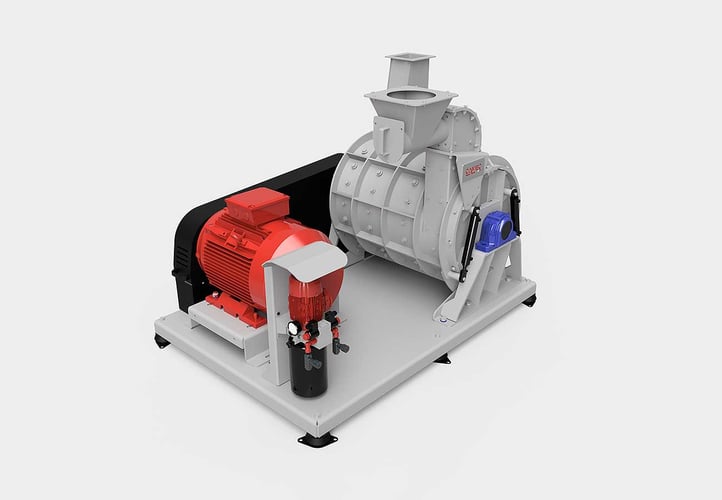

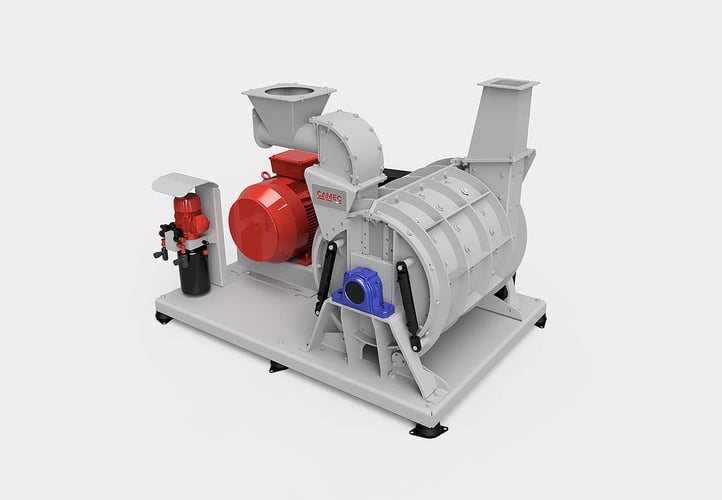

The horizontal turbine produced by Camec is designed to optimize the granulation process for both metallic and non-metallic materials.
Description
The horizontal turbine produced by Camec is designed to optimize the granulation process for both metallic and non-metallic materials.
Specifically, it is used for the production of non-ferrous metal granules, facilitating subsequent separation stages via vibrating screens or density tables.
The horizontal configuration ensures an even distribution of material, enhancing production efficiency and minimizing residual impurities.
The robustness and reliability of Camec's design make this turbine ideal for high-performance industrial applications, ensuring a stable and continuous production process.
Technical specifications
-
Fully automatic chamber opening system for easy maintenance.
-
Wear-resistant blades.
-
Rotor speed: 1600 RPM.
-

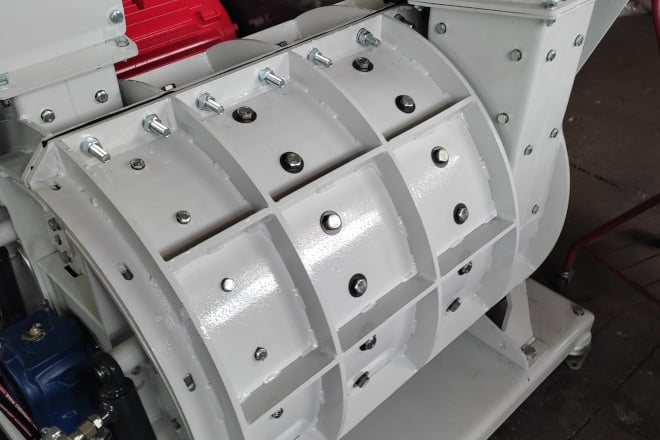

Tangential lining with wear resistant C40 material (carbonitriding treatment).
-
Dimensions: mm 1950 x 1370 x H 1470
-
Diameter: mm 650
-
Loading mouth: mm 150 x 150
-
Weight: kg 2050
-
Motor: kW 55
