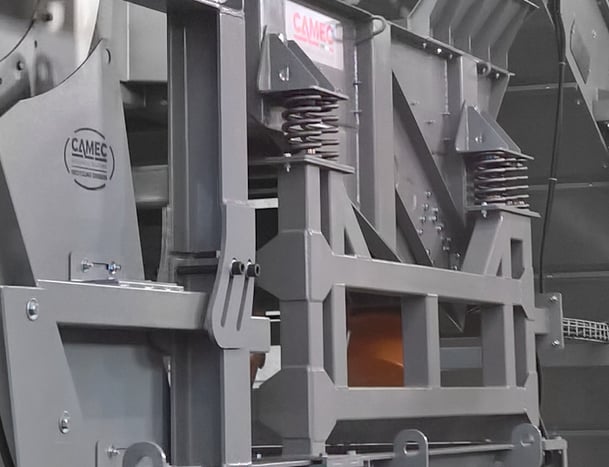

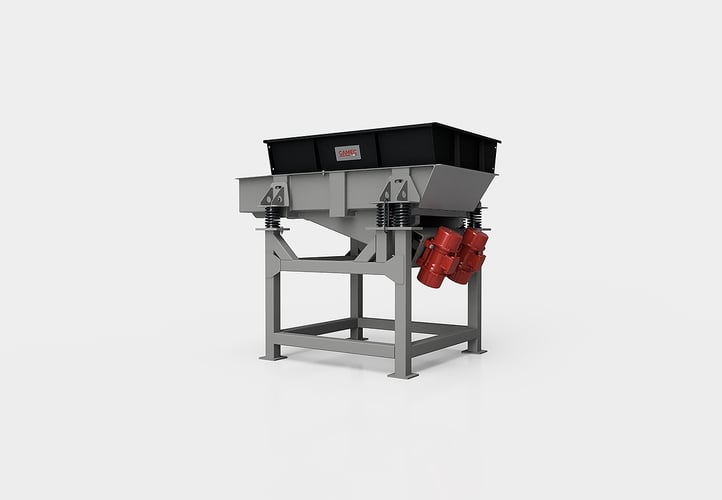

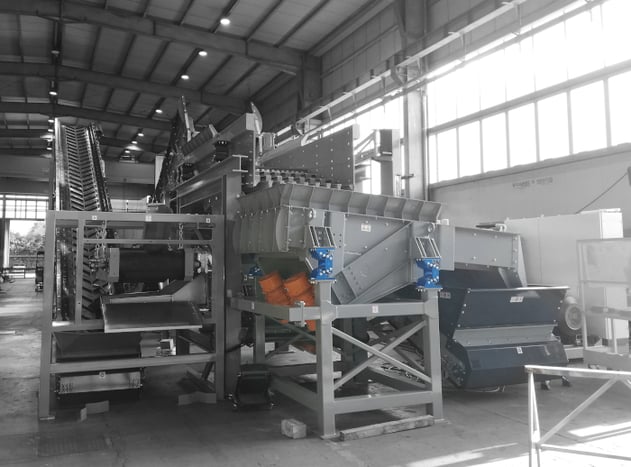

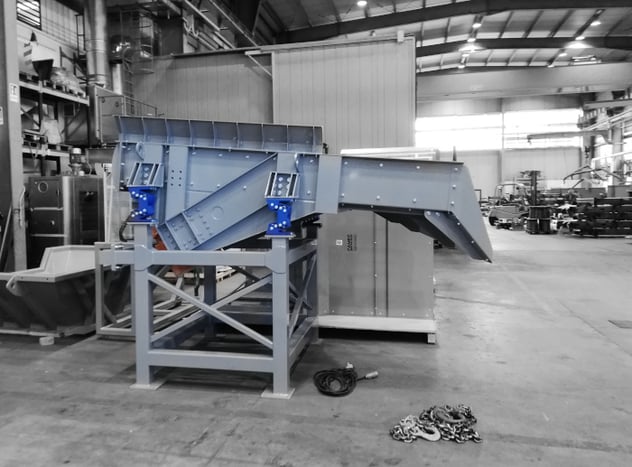

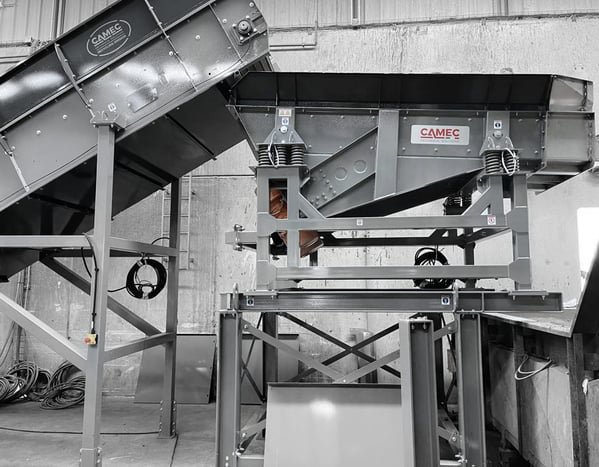

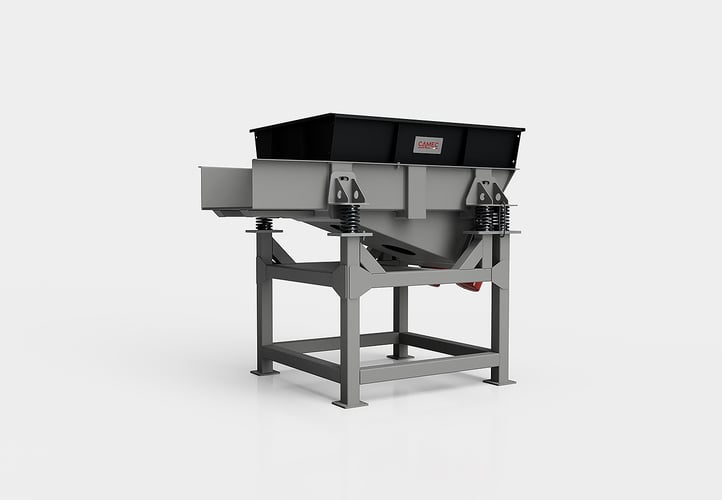

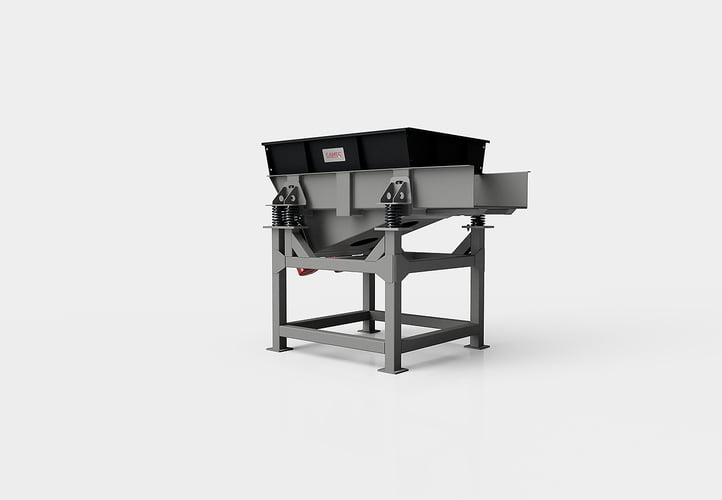

Eccentric Weights Vibrating Conveyor
Ideal for distribution of material across the entire width of the conveyor or in cases in which the material is received by means of a gravity feed that could damage rubber conveyor belts.
The motors product a mono-directional vibration that imparts motion and transport direction to the material.
Description
Composed of a robust arc-welded trough supported on anti-vibration mounts and housed in a suitably braced metalwork frame secured to the floor. The frame also allows a degree of inclination of the trough such as to achieve the optimal condition for the flow of material in the trough.
The internal plastic lining reduces noise levels and prevents damage to the transported products for applications in which this is a requirement.
The drive unit is sized time by time based on the process characteristics.
Technical specifications
- Robust support structure in arc-welded tubular members
- Arc welded conveyor trough resting on anti-vibration mounts
- Open Style
- Conveyor surface in carbon steel
Rubber conveyor belts
Composed of a pressed sheet steel structure and triple ply rubber belt, rubber conveyor belts are suitable for transporting material of all types. The conveyor is equipped with lower idle rollers to support the belt.
- Product containment sidewalls
- Support structure with height adjustable feet
- Side inspection hatches for easy access to the belt for maintenance
- Installed power: 3 kW
- Speed 30 m/min approx.
Metal Slat Conveyors
In metal slat conveyors the frame is made of heavy gauge arc welded tubular sections with regularly spaced cross frames, suitable for transporting medium-heavy materials.
- heavy gauge metal slat conveyors, suitable for severe duty and with a long lifetime
- Generously sized drive unit with flanged shaft for easy maintenance
- Brake motor to prevent material slippage in case of system stops
- Pre-stretched drive chain with hardened wheels, bushes and pins
PVC belt conveyors
Made with a structure in painted Fe pressed profiles with a reinforced fabric PVC belt with cleats, these conveyors are ideal for transporting all types of light materials. The belt is equipped with a loading hopper to facilitate feeding operations.
- Installed power: 3 kW
- Speed: approx. 30 m/min
- Product containment sidewalls
- Support structure with height adjustable feet
- Side inspection hatches for easy access to the belt for maintenance
- loading hopper to feed the material to be carried onto the belt
