Screw conveyors
Screw conveyors are systems for transporting reduced size materials in small fractions. They are used for powdery material or for liquid materials, for which they ensure rapid transport without dispersal.
Available versions

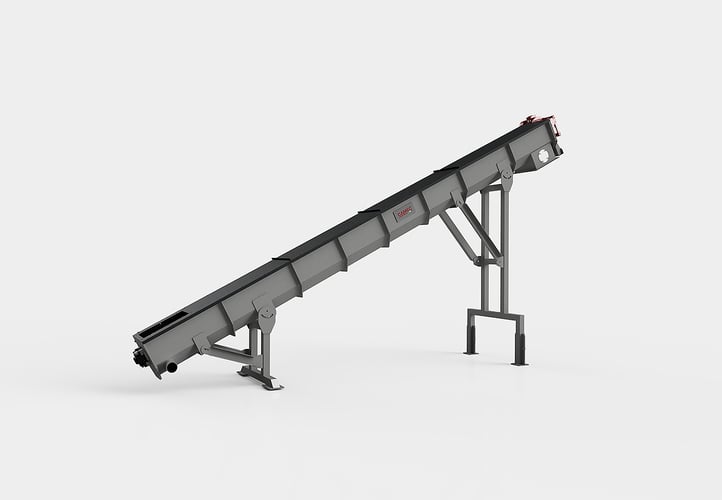

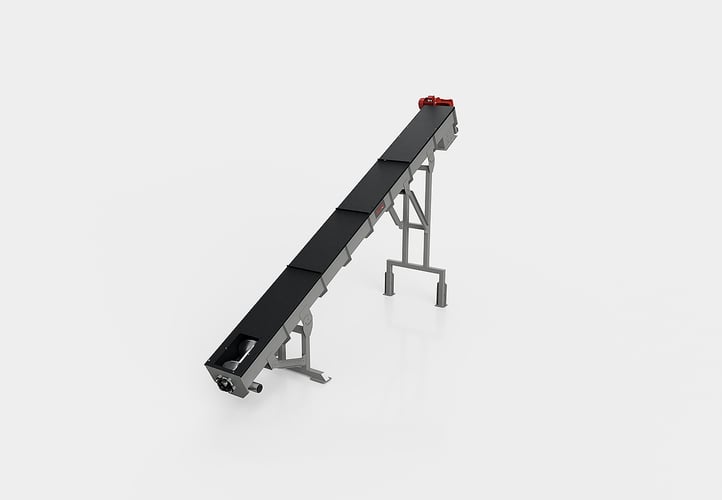

- Open Trough Screw Conveyor
- Tubular Screw Conveyor
Description
Usually installed downline of single-shaft shredders, screw conveyors ensure transport of the material to the next processing stage or to the point of discharge into big-bags.
Available in open trough versions with covers for easy maintenance and cleaning, and also in tubes of various diameters to guarantee the maximum liquid tightness, screw conveyors are ideal for transporting light materials such as granulated plastic, wood, or rubber. Available in various lengths and diameters, screw conveyors are constructed with perforated sections in certain parts to allow controlled drainage of liquids.
Technical specifications
- Motor and gear reducer flanged directly onto the shaft mounted on a torque arm located at the top of the screw
- Bearing in the lower part equipped with shaft seal to prevent dust ingress and separate from the screw containment walls to ensure any dust content can drop to the floor
- Central support prop
- Floor anchor bracket on the lower part
Rubber conveyor belts
Composed of a pressed sheet steel structure and triple ply rubber belt, rubber conveyor belts are suitable for transporting material of all types. The conveyor is equipped with lower idle rollers to support the belt.
- Product containment sidewalls
- Support structure with height adjustable feet
- Side inspection hatches for easy access to the belt for maintenance
- Installed power: 3 kW
- Speed 30 m/min approx.
Metal Slat Conveyors
In metal slat conveyors the frame is made of heavy gauge arc welded tubular sections with regularly spaced cross frames, suitable for transporting medium-heavy materials.
- heavy gauge metal slat conveyors, suitable for severe duty and with a long lifetime
- Generously sized drive unit with flanged shaft for easy maintenance
- Brake motor to prevent material slippage in case of system stops
- Pre-stretched drive chain with hardened wheels, bushes and pins
PVC belt conveyors
Made with a structure in painted Fe pressed profiles with a reinforced fabric PVC belt with cleats, these conveyors are ideal for transporting all types of light materials. The belt is equipped with a loading hopper to facilitate feeding operations.
- Installed power: 3 kW
- Speed: approx. 30 m/min
- Product containment sidewalls
- Support structure with height adjustable feet
- Side inspection hatches for easy access to the belt for maintenance
- loading hopper to feed the material to be carried onto the belt
